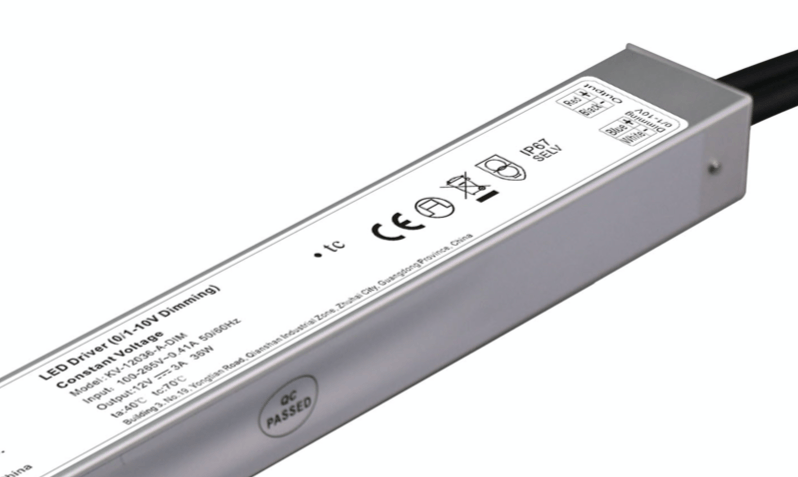

DIMMABLE DRIVER - 12V/30W - 0/1-10V CONSTANT VOLTAGE - IP67 RATED

30W constant voltage 0-10V/1-10V/Potentiometer/10V PWM (4 in 1) dimmable LED driver

LED Cool Lights, 12V, 24V, 36V, 48V, 0/1-10V 4in1 PWM dimmable LED driver, is compatible with all standard 0-10V/1-10V/100K potentiometer/10V PWM dimmer and various lighting control system, such as Lutron, Clispal, C-BUS etc.

Dimmable Driver provides a smooth flicker free dimming range and step-less dimming performance.

This driver is IP20 and ETL Listed.

• Tech Specs

  • 12Volt: Part No - LEDC-KV-12030-P-DIM
  • 24Volt: Part No - LEDC-KV-24030-P-DIM
  • 36V: Part No - LEDC-KV-36030-P-DIM
  • 48V: Part No - LEDC-KV48030-P-DIM
  • 100-265V
  • Metric Size: 180x60x35mm
  • 7.1" (L) x 2.4" x 1.4"
  • IP20
  • Max Load: 24V-30W
  • Rated Current: 2.5A (12Volt)
  • Rated Current: 1.25A (24Volt), 0.83A-36V, 0.63A-48V
  • Dimming Range 0-100%
