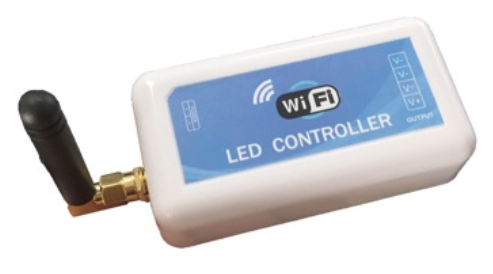

LED Cool Lights, Wifi-101 Controller, is a smart lighting wireless wifi controller for single color LED. The app will control multiple controllers to allow for zone control. This high quality Wifi RGB Controller is wireless, and can allow for multiple scene settings, and separate zone controlling. Dimmable with app with 100 brightness levels, 2 dynamic modes, 100 levels speed (cool white fade, cool white strobe, warm white fade, warm white strobe, color and warm white fading.)
Android 4.4 or above and iOS 8.0 or above.
● work temperature：-20-60℃
● input voltage：DC12~24V
● output：3CH
● Connect：Common anode
● Size：L85*W45*H23 mm
● NW：58g
● Static power consumption：<1W
● Output current：<4A/CH
● Output power：12V:<144W, 24V:<288W
● Control distance：No limit
●distance between controller and router：100 meters in open area（Depends on the wireless router's signal transmission distance）
Function:
WiFi cloud control.
One by one or group control.
100levels brightness。
2 dynamic modes，100 levels speed.（Cool white fade、cool white strobe、warm white fade、warm white strobe、cool-warm white fade）
Cables connect ways：
Input：DC5V, 12-24V(power adapter AC in、DC out)
Output：V-/V-/V-/V+（DC5V,12-24V Single color LED Strip light led module）
